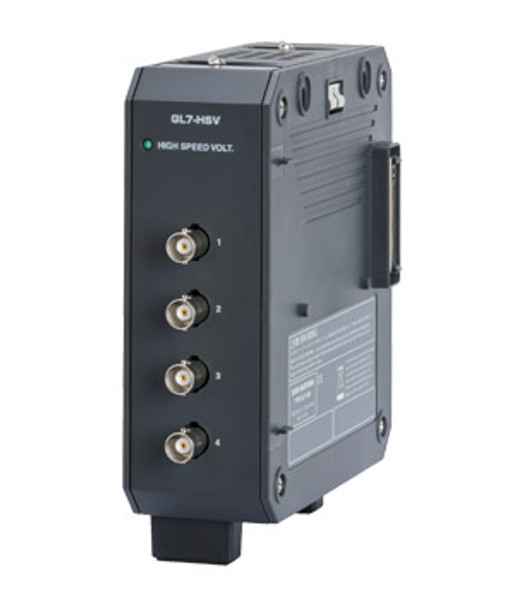

  • GL7-HSV, high-speed voltage module only (GL7000 main unit and other modules excluded)
  • Image 2
  • Image 3

GL7-HSV, high-speed voltage module

$2,400.00
SKU:
GL7-HSV
Quantity:

Product Description

GL7-HSV, 4-ch, high speed voltage amp, high isolation per channel, 1M samples/s, 1mV to 100V F.S. and 1-5V F.S.

Dynamic high speed recording module inputs voltage signal from displacement sensors to proximity sensors that fluctuates in high speed.  The signal recorded by a high resolution 16-bit Analog-to-Digital converter samples the measurement data at maximum 1MS/s (1µs) interval.

Type of module Voltage measurement module - High-speed sampling model -
Model number GL7-HSV
Number of input channels 4 channels
Input method All channels isolated unbalanced input, Simultaneous sampling,
BNC connector
Sampling speed (interval) 1 M Samples/s to 1 Sample/h (1μs to 1 hr.)
Built in RAM 2 million samples for each channel
Measurement range 100, 200, 500 m , 1, 2, 5, 10, 20, 50, 100 V, and 1-5 V Full Scale
Measurement accuracy (*1) ±0.25% of Full Scale
A/D converter Successive approximation type, 16 bits (effective resolution: 1/40000 of the measuring full range)
Input impedance 1 M ±5%
Maximum input voltage Between (+)/(-) terminal 100 m to 1 V range: 60 VP-p,
2 V to 100 V range: 100 VP-p
Between channels ((-) terminals) 60 VP-p
Between channel/GND 60 VP-p
Max. voltage (withstand) Between channels 1000 VP-p (1 minute)
Between channel/GND 1000 VP-p (1 minute)
Isolation Between input/GND Min. 50 M (at 500 V DC)
Common-mode rejection ratio Min. 90 dB (50/60 Hz, Signal source impedance: Max. 300 Ω)
Frequency response DC to 200 kHz (+1/-3 dB)
Filter Low pass Off, Line(1.5 Hz), 5, 50, 500, 5k, 50k Hz (at -3 dB, 6dB/cot)
External dimensions (W×D×H) Approx. 49 x 136 x 160 mm (Excluding projections)
Weight Approx. 740 g

*1 Subject to the conditions:

  • Room temperature is 23ºC ±5ºC.
  • When 30 minutes or more have elapsed after power has been turned on.
  • Filter is set to 10 or Line. ‚óŹ Sampling rate is set to 1 second.
  • GND terminal is connected to ground.
